TDE Network Manager connection attempt failed SSDI not found! [SOLVED]

acerspanish · 2023-08-25 08:21

Dear all,

I am new to the community and also new to Q4OS, so apologies if this topic has already been solved and I am asking about it again.

I have seen some answers to my own problem, but when I put in practice those answers and/or solutions aren't working for me, so I will set my specific data so probably it is a software/hardware related issue.

I am currently connected to the internet using a LAN cable, but I would like to connect also using WI-FI, with other linux distributions such as LXLE and Peppermint, however, my Acer is not as fast and strong anymore as it used to be so, I am giving a try to Q4OS, except for the issue of the WI-FI connection, everything is fantastic with this distro, so I have opened the Terminal - Konsole and typed the command:

inxi -f

and this is the result:
CPU:
Info: single core model: Intel Atom Z520 bits: 32 type: MT cache:
L2: 512 KiB
Speed (MHz): avg: 798 min/max: 800/1333 cores: 1: 798 2: 798
Flags: acpi aperfmperf apic arch_perfmon bts clflush cmov constant_tsc
cpuid cx8 de ds_cpl dtes64 dtherm dts est fpu fxsr ht lahf_lm mca mce mmx
monitor movbe msr mtrr nx pae pat pbe pdcm pebs pge pni pse sep ss sse
sse2 ssse3 tm tm2 tsc vme xtpr

If someone can help he get the WI-FI connection it would be so much appreciated, or if there is a similar situation where you can submit me and I will find it out following the directions.

Thank you.

Last edited by acerspanish (2023-09-22 09:14)

acerspanish · 2023-08-31 13:15

Adding the requested information suggested by the link below:

In order to get support, or report an issue on this forum, please follow a few rules below when creating a new topic in the "Q4OS Support" section.
Please provide the following info:
- Installation media image file, or a method, you have used for system installation.
The process that I have used to install the system is through the image file: q4os-5.2-i386-instcd.r2.iso using an usb flash memory device, I did not use Rufus, I have used Ventoy to install the system in my laptop.
- Desktop environment you are using (Plasma, Trinity, ... other).
The Desktop environment I am using according to the own description of the System is Trinity
- Desktop software profile applied, using the Desktop profiler tool (Full, Basic, Pure, Custom).
I have used the Desktop profiler tool “Full”
- A brief description and steps to reproduce the issue.
- Screenshot, if possible.
When I see the wi-fi options that I get from the Netwrok Manager tool, I select the option that corresponds to my wi-fi connection, there are actually two, but when I select any of the two options, I got the same error message: I will add the screenshot attached in a next post because only one attachement is allowed per post.
In most cases it's helpful to get some relevant debug information from your system for us to be able properly investigate an issue. Please run in terminal:
$ reportq4 please see the report attached
and send the debug file generated via email support@q4os.org , or attach it here for us to analyze.
If you report a hardware related issue, please run in terminal:
$ inxi -F
and post back the terminal output. The output of the command inxi -F is in my previous post

If you need some more info, please let me know.

Attachments:

qreport.tar.gz, Size: 226.52 KiB, Downloads: 109

acerspanish · 2023-08-31 13:16

Adding the screenshot of the error message:

Attachments:

errormessageTDENM.png, Size: 10.23 KiB, Downloads: 93

Rademes · 2023-08-31 16:38

Sorry to bother again, but please post the output of inxi -Fxxx, because inxi -F does not provide all information about hardware. But inxi -Fxxx even gives Chip ID!

acerspanish · 2023-09-06 07:34

Hi Rademes, don't apologize, as long as you help me connect my laptop to wi-fi I will send you all the information you need, please find below the information you requested, of course with the mac data deleted.

Output of inxi -Fxxx:

System:
Host: q4os-desktop Kernel: 6.1.0-11-686-pae arch: i686 bits: 32
compiler: gcc v: 12.2.0 Desktop: Trinity v: R14.1.1 tk: Qt v: 3.5.0
info: kicker wm: Twin v: 3.0 vt: 7 dm: 1: TDM 2: XDM Distro: Q4OS 5.2.1-n1
base: Debian GNU/Linux 12 (bookworm)
Machine:
Type: Other-vm? System: Acer product: AO751h v: N/A
serial: <superuser required> Chassis: type: 1 serial: <superuser required>
Mobo: Acer model: JV11-ML serial: <superuser required> BIOS: Acer
v: 0.3208 date: 08/10/2009
Battery:
ID-1: BAT1 charge: 2.1 Wh (100.0%) condition: 2.1/57.7 Wh (3.7%) volts: 12.0
min: 11.1 model: SANYO UM09B34 type: Li-ion serial: 23845 status: full
CPU:
Info: single core model: Intel Atom Z520 bits: 32 type: MT smt: enabled
arch: Bonnell rev: 2 cache: L1: 56 KiB L2: 512 KiB
Speed (MHz): avg: 798 min/max: 800/1333 cores: 1: 798 2: 798
bogomips: 5319
Flags: ht nx pae sse sse2 sse3 ssse3
Graphics:
Device-1: Intel US15W/US15X SCH [Poulsbo] Graphics
vendor: Acer Incorporated ALI driver: gma500 v: N/A arch: PowerVR SGX535
ports: active: LVDS-1 empty: SVIDEO-1,SVIDEO-2,VGA-1 bus-ID: 00:02.0
chip-ID: 8086:8108 class-ID: 0300
Device-2: Suyin Acer/Lenovo Webcam [CN0316] type: USB driver: uvcvideo
bus-ID: 1-4:2 chip-ID: 064e:a102 class-ID: 0e02
serial: CN0316-S30C-OV061-VA-R02.02.02
Display: x11 server: X.Org v: 1.21.1.7 driver: X: loaded: modesetting
unloaded: fbdev,vesa dri: swrast gpu: gma500 display-ID: :0 screens: 1
Screen-1: 0 s-res: 1366x768 s-dpi: 106 s-size: 327x184mm (12.87x7.24")
s-diag: 375mm (14.77")
Monitor-1: LVDS-1 model: AU Optronics 0x205c res: 1366x768 hz: 60 dpi: 136
size: 256x144mm (10.08x5.67") diag: 294mm (11.6") modes: 1366x768
API: OpenGL v: 4.5 Mesa 22.3.6 renderer: llvmpipe (LLVM 15.0.6 128 bits)
direct-render: Yes
Audio:
Device-1: Intel US15W/US15X/US15L/UL11L SCH [Poulsbo] HD Audio
vendor: Acer Incorporated ALI driver: snd_hda_intel v: kernel
bus-ID: 00:1b.0 chip-ID: 8086:811b class-ID: 0403
API: ALSA v: k6.1.0-11-686-pae status: kernel-api
Server-1: PulseAudio v: 16.1 status: active
Network:
Device-1: Realtek RTL810xE PCI Express Fast Ethernet
vendor: Acer Incorporated ALI driver: r8169 v: kernel pcie: speed: 2.5 GT/s
lanes: 1 port: 2000 bus-ID: 02:00.0 chip-ID: 10ec:8136 class-ID: 0200
IF: enp2s0 state: up speed: 100 Mbps duplex: full mac:
Device-2: Qualcomm Atheros AR9285 Wireless Network Adapter vendor: Foxconn
driver: ath9k v: kernel pcie: speed: 2.5 GT/s lanes: 1 bus-ID: 03:00.0
chip-ID: 168c:002b class-ID: 0280
IF: wlp3s0 state: down mac:
Drives:
Local Storage: total: 149.05 GiB used: 7.26 GiB (4.9%)
ID-1: /dev/sda vendor: Hitachi model: HTS543216L9SA00 size: 149.05 GiB
speed: <unknown> type: HDD rpm: 5400 serial: 090819FB22015CEXB2MA rev: C40C
scheme: MBR
Partition:
ID-1: / size: 144.71 GiB used: 7.18 GiB (5.0%) fs: ext4 dev: /dev/sda1
Swap:
ID-1: swap-1 type: partition size: 976 MiB used: 82 MiB (8.4%) priority: -2
dev: /dev/sda5
Sensors:
System Temperatures: cpu: 27.0 C mobo: N/A
Fan Speeds (RPM): N/A
Info:
Processes: 160 Uptime: 9m wakeups: 1 Memory: 987.9 MiB
used: 633.8 MiB (64.2%) Init: systemd v: 252 target: graphical (5)
default: graphical Compilers: N/A Packages: pm: dpkg pkgs: 1818 Shell: Bash
v: 5.2.15 running-in: konsole inxi: 3.3.26

By the way, I like the image of your profile, the cat with a moustache reminds me a lot of Freddie Mercury and I am a very big fan of Queen.

Thank you very much for all of your help.

Rademes · 2023-09-07 14:48

The problem is, I do not have similar hardware as you have, so I can not provide you with the direct solution to your problem. The only thing I can do is to point you to another possible solutions in the Debian forum or rest of the Internet, but you will have to test them by yourself.
The good thing, you can connect to the internet using LAN cable, otherwise, you would be screwed.

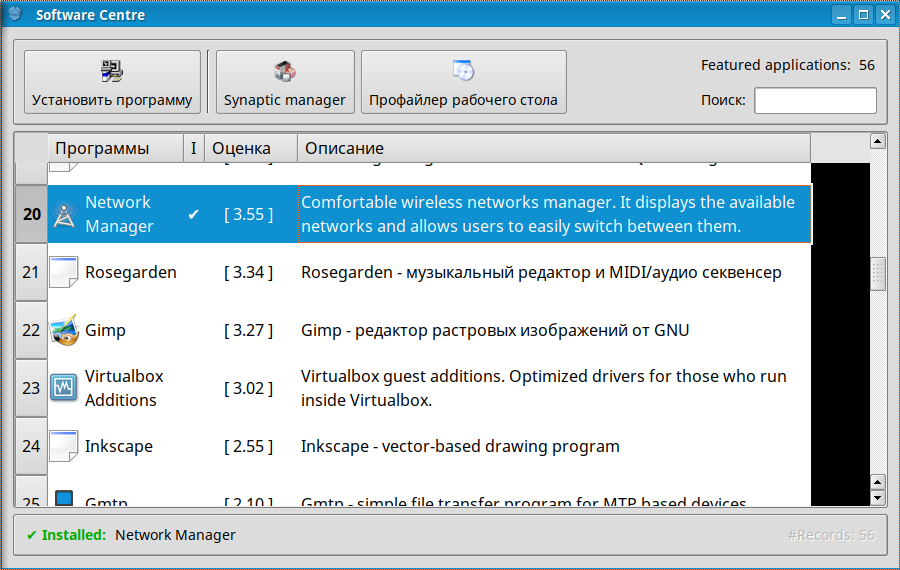

So, the first thing, try to install the Network Manager using Q4OS Software Centre (see attachment). Sometimes, it is enough to solve the WiFi problem, because the default TDE Network Manager does not working well with WiFi Adapters.
If it does not help, read this forum topic: https://forums.debian.net/viewtopic.php?t=135638
And try the solutions, described there.

Last edited by Rademes (2023-09-07 14:51)

Attachments:

NetworkManager.png, Size: 80.37 KiB, Downloads: 92

acerspanish · 2023-09-12 09:08

Hello Rademes, you are a genius, Now I could connect to the wi-fi using the first oprion you gave me. I installed the Network Manager using Q4OS Software Center, after restarting the laptop, IT WAS POSSIBLE to connect to the wi-fi. I think we can close this thread now. Thank you very much again, you have helped me a lot.

Rademes · 2023-09-12 16:08

I am not a genius! It is a well known fact, that installing the Network Manager using Q4OS Software Centre can solve WiFi connection problems.
Please mark the title of the first post as [SOLVED]. To do it Edit original post and change the topic subject.

Last edited by Rademes (2023-09-12 16:14)

acerspanish · 2023-09-22 09:17

Hi again, yes probably is a well known fact, but not for me. Again and anyway, thank you very much for your help. I have already marked the title of the first post as [SOLVED]. Thank you very much again and if I have any other further questions I will come back.
